Machine Specifications

​

· Right hand side door

· 304 12 Gauge Stainless Steel cabinet with white powder coat.

· Stand or sit operation

· L.E.D.  lighting 3 strips 4300 lumens mounted outside of the cabinet for ultimate protection

· Internal workspace 35.5 W X 35.5 D X 39 H

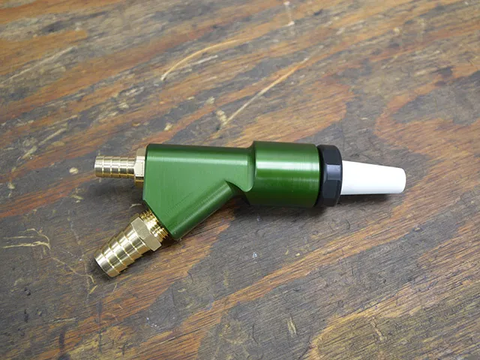

· Blasting gun sized to your air supply

· Industrial control box with on/off switch and all operations foot pedal activated

· Hybrid fully tig welded basin and upper cabinet bolt together. (Note: Can be disassembled and moved     through a 30 inch doorway if need be)

· Air connections for main air, pinch valve, and closed loop located on back of machine.

· Flexible and light weight slurry, air and rinse hoses.

· Leveling Casters standard.

· Intake and Exhaust or Dual Exhaust ports.

· Closed loop rinse filtration system standard, located on the left side of the machine

· Nitra precision air regulator

· Pump ½ Hp 53 Gallons per min

· 15 amp 110-volt service allows for positioning the machine anywhere

· 24 Volt Wiper off low and high speed and 24 Volt Air and Water solenoid

· Window rinse Solenoid come on with foot pedal.

· Pinch valve closes on foot pedal contact and a timed delay

· releases the basin overflow

· Deep drip tray to minimize door dripping and to prevent spills.

· 50 to 65 pounds of media or 4 to 5 gallons to 15 to 16 gallons of water in the 20 gallon capacity hopper.
